Cabinet

  • Continuous TIG welded 304 stainless chamber liner
    for leak free service.
  • Non-settling oven grade fiberglass insulation, 0.25 K
    factor.
  • Chamber drain, all models not just humidity.
  • Welded structural base frame with removable
    service panel on three sides.
  • Dual silicone one piece door gaskets with mitered
    and vulcanized corners.
  • Multipane tempered viewing window (with wiper on
    GD models).
  • Durable blue powder coated exterior finish.
  • One three inch (3 ") access port.
  • Heavy duty casters.

Electrical

  • UL 508A compliant control panel
  • All wiring meets NEC standards
  • System branch circuits individually fused.
  • 115 volt control circuitry.
  • Full system function switches and indicator lights.
  • System fault status indicators.
  • All wiring color coded and labeled.
  • High temperature failsafe limit.

Refrigeration

  • Zero ozone depletion refrigerants.
  • Cryogenic models available
  • Copper tube/aluminum fin cooling coil.
  • Air/Water cooled condensers available.
  • Air cooled desuperheater (cascade models) and oil
    separator.
  • High efficiency brazed plate cascade heat
    exchanger.
  • Non-bucking automatic heat/cool mode selection
    with compressor time-out.
  • Dual high/low refrigeration pressure limit switches.
  • Inherent compressor overload protection.
  • Refrigeration service manifolds with gauges.
Call or Text:  (386) 801 - 4290
Office Voice or Fax: (386) 322 - 5325
Email us at:
Sales@quadcomm.net
On the Web at:  www.Quadcomm.net
G' series Elite, Temperature &  Temperature/Humidity Chambers
  • Russells G-Series Elite portable temperature and temperature and humidity test chambers give you the
    features and accessories you need to keep your temperature and humidity lab tests running smoothly.
    These mobile systems are equipped with all the features you need from the start. There are no extra
    hidden costs for these features like you would find from other vendors. These features include
    microprocessor instrumentation, failsafe temperature protection, and humidity water demineralizer, as well
    as window, gauges, port, casters, system status indicators, and more. These Elite features would normally
    cost substantiallly more, if they are available at all. Our Elite test chambers are even more attractive when
    you view their designed-in performance advantages including:

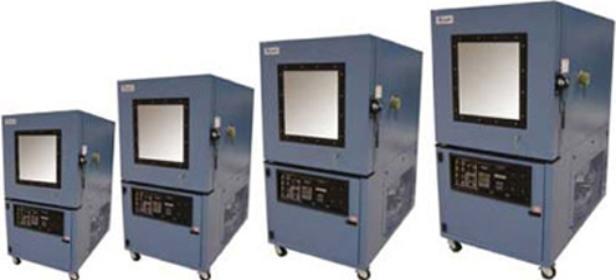

The G-8 Elite                  The G-16 Elite                        The G-32-Elite                                The G-64 Elite
8 cu ft                             16 cu ft                                    32 cu ft                                             64 cu ft

  • Quick response vapor generator with replaceable
    inconel sheath immersion heater.
  • Vapor generator failsafe overtemp protection.
  • Humidity water demineralizer.


Controls

  • Watlow microprocessor programming controller.
  • Self prompting operation with 256 programable
    segments.
  • Watlow failsafe product safeguard test item
    temperature limit.
  • RS-232 Interface.


Optional Accessories:

Chamber

  • Additional access ports.
  • Shelves.
  • 208 or 460 volts power input.
  • Main power disconnect switch.
  • Running time meter.
  • Boost cooling system, LN2 or CO2
  • Humidity water reservoir.
  • Dry air or nitrogen purge.
  • R.H. hinged door.
  • Master heating circuit contactor.
  • Auto restart timer.
  • Balanced load on 3 phase power.

Controls

  • RS-422/423 data interface with communications
    software.
  • Programmer on/off event relays.
  • Chart recorders.
  • Watview software.
Product Information
  • More heating, cooling and air flow capacity than competitive models bring you to temperature quickly and
    with better uniformity

  • Responsive expansion valve and bypass refrigerant  control put all of the refrigeration horsepower to work
    for you

  • Maintenance is simplified with full three sided access to base mounted system components

  • All models available with cyrogenic cooling
Standard Climate Chamber Features:
G' series Delivered from STOCK !
.
CYLEX Silver awarded company
.
