Standard Features:
•        Brushed 304 series stainless steel liner, heliarc welded
and dye checked.
•        Capable of handling extreme temperature and humidity.
•        Fiberglass insulation, .25k factor.
•        Welded steel frame.
•        Full opening chamber door with dual gaskets.
•        Removable access panels to serviceable components.
•        Durable blue enamel finishes (custom colors available).

Cooling:
•        Low or zero ozone depletion refrigerants.
•        Energy saving refrigeration bypass capacity control.
•        Low stage desuperheater.
•        Oil pressure switches.
•        Compressor suction and discharge pressure switches.
•        Water cooled condenser.
•        Vapor tank and condenser ASME certified.
•        Compressor overload protection.
•        High stage compressor crankcase heater.
•        Compressor head fans.
•        Low stage oil separator.
•        All piping joints silfos or silver soldered.
•        Stainless steel compressor condensate pans.

Electrical:
•        All wiring meets NEC standards.
•        120 volt control circuit transformer.
•        Fully enclosed electrical panel.
•        All circuits fused or circuit breaker protected.
•        Full system function switches w/ system status pilot lights.
•        Incandescent interior lighting.
•        All wiring numbered or color coded.
•        High Temperature limit safety.
•        Master heating circuit contactor.
•        Air circulator/heater interlock
•        Balanced load on 3 phase power.
Call or Text:  (386) 801 - 4290
Office Voice or Fax: (386) 322 - 5325
Email us at:
Sales@quadcomm.net
On the Web at:  www.Quadcomm.net

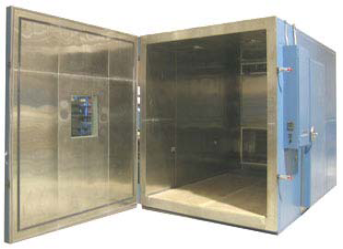

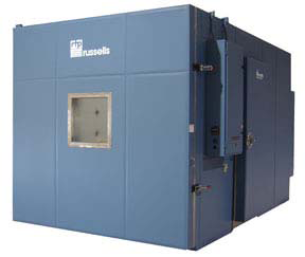

Solid Construction Walk-In Temperature/Humidity Chambers, W-SERIES
Russells unitized solid construction test chambers give the
maximum durability and performance for your most demanding
test requirements.  Moisture build up can be very damaging to
many products, especially electronics, causing corrosion and
oxidation.  Russells W-Series chambers allow manufacturers to
simulate how their products will perform in the most extreme
temperature and humidity conditions.
Russells W-Series chambers can provide the following
combination of controlled testing environments:
•    Steady state temperature and temperature/humidity tests
•    Rapid rate temp./humidity cycling tests (>9˚F/5˚C/min.)
•    Elevated temperature heat aging (>350˚F/177˚C)
Cabinet Features:
•    Brushed 304 stainless steel liner, heliarc welded and
dye checked
•    Welded steel frame, removable access panels to
serviceable components, durable enamel finish
•    Fiberglass insulation, 0.25K factor
•    Full opening door with dual gaskets (many door
configurations available)
Performance:
•   Temperature range for single stage refrigeration:
-13˚F/-25˚C to 350˚F/177˚C
•    Temperature range for cascade refrigeration:
-100˚F/-73˚C to 350˚F/177˚C

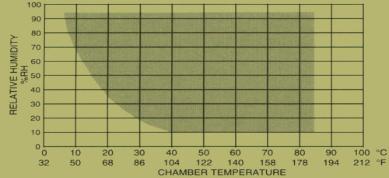

•    Humidity Range: 10% to 95% RH within the bounds
of a 185°F/85°C max. dry bulb and a 40°F/4°C min.
dewpoint.
Russells W-Series chambers are available in sizes from 225 cu./ft. (6,371L) to drive in sizes. A Russells
application engineer can assist you in selecting the chamber configuration and size that is most
economical for your testing needs.   Let Russells give you the competitive edge!  Call 386-801-4290
Optional Accessories:
•        Through-wall access ports w/foam plugs.
•        Refrigeration gauges.
•        Refrigeration sound deadening package.
•        Remote refrigeration systems.
•        LN2 boost cooling.
•        Air cooled condenser.
•        Humidity water demineralizer.
•        Dry air purge system.
•        Desiccant dehumidifier.
•        Personnel entrance airlock.
•        Entry ramp.
•        Running timer meter.
•        System message display.
•        Electrical disconnect switch.
•        Explosion proof electrical system.

Optional Instrumentation:
•        Microprocessor temperature/humidity
programmer controller.
•        Solid state humidity sensor on humidity
models.
•        Product safeguard redundant over/under
temperature limit.
•        Circular or electronic chart recorders.
•        Computer communications, networking,
data-logging software.
•        Free standing remote instrument console.
